Water conservation and the handling of storm water runoff to remove pollutants are two of the significant environmental challenges facing new construction projects. In a recent project in College Park, Ga., the two are solved together in an elegantly linked plan. It is the first use in the southeastern U.S. of the TreePod box biofilter, a new product for storm water collection and primary treatment.
College Park—a small city on the southern border of Atlanta—wanted to redevelop an abandoned residential neighborhood into a viable commercial district. The neighborhood comprises a 16-block corridor west of Hartsfield-Jackson Atlanta International Airport, the world’s busiest airport. When the airport was expanded in the 1980s, the neighborhood came directly under the new flight path. The airport bought the homes through a Federal Aviation Administration noise abatement program, and all but a few were leveled. The largely uninhabited area became blighted, attracting an undesirable element of people and activities.
However, the location has great potential. It is adjacent to both airport and interstate highways to the east. In the south, it borders the Georgia International Convention Center, two hotels and an office park. To the west is a golf course. Moreover, it is 15 minutes to downtown Atlanta by rail. Wanting to turn the area around, College Park gradually bought the parcels back from the city of Atlanta, hoping to redevelop it as a commercial district.
Missing Infrastructure
One of the first steps towards making the area attractive to businesses was providing missing infrastructure. The neighborhood was very old. It had gas, water and sanitary sewer services, but no storm water drainage system. “Every time it rained, the streets flooded,” said Jackson Myers, city engineer for the city of College Park. “It was unsafe to drive because of hydroplaning.” Moreover, the road surfaces were, not surprisingly, in terrible condition.
In early 2009, when the incoming Obama administration was seeking public projects to stimulate the economy, College Park proposed a low-impact development green solution to improve the area with a sustainable storm water and irrigation system.
The proposal consisted of two closely related projects, both of which enabled the city to make better use of storm water runoff. The concept for the first phase, the neighborhood redevelopment, was to collect runoff from the streets of the 16-block corridor and pipe it to two large new sedimentation ponds comprising the Camp Creek Drainage Basin. Simultaneously, a new irrigation water supply system to the corridor, which would draw water from the sedimentation ponds, would be installed. This would reduce the city’s current expenses for bringing water in from another county.
Building regional storm water infrastructure creates an incentive for businesses to build in College Park. An incoming company can save the $250,000 to $350,000 expense of building an individual detention system. Instead, they could tie into the regional system for approximately $10,000 per acre, minimizing their upfront building costs and saving precious property for more profitable uses. In addition, they can tie into a low-cost source for irrigation water.
The storm water system had to be designed to handle the entire future build-out of the neighborhood, not just the existing streets. The city assumed that the area—approximately 100 acres—would eventually be 10% green space, with the rest either hardscape or rooftop surfaces.
The second phase involved the adjacent Gordon Morris Memorial Golf Course, a nine-hole course built in the 1930s where storm water runoff drains to the golf course pond. The city proposed piping from the pond to irrigate not only the golf course, but also the grounds of the adjacent 26-acre Georgia International Convention Center, again saving money and natural resources. Prime Eng. of Atlanta provided engineering for both phases.
The project was approved at a budget of $5 million, making it the largest storm water management project of its type in the southeast. Of this, $2.6 million was for installation of the neighborhood storm water system, $1.5 million for the golf course system and $880,000 for engineering services. With funding from the American Recovery and Reinvestment Act of 2009 and the Georgia Environmental Finance Authority, $3 million of that total does not have to be repaid, giving the city a big boost to reclaim this area as useful, revenue-producing land.
A 4-ft-by-4-ft TreePod unit, as delivered to the job site.
Biofiltration

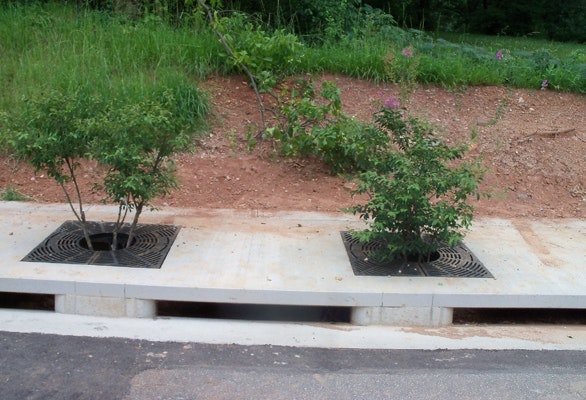

For the heart of the storm water management system, the city selected TreePod biofilters manufactured by Oldcastle Stormwater. These biofilters are open-bottomed box filters that remove suspended solids, petrochemicals and other pollutants using natural filtration methods. This treatment enables the project to meet the 80% total suspended solids removal requirement in the Georgia Stormwater Management Manual in a low-impact manner. More than 100 TreePod units were installed, making this one of the largest projects of its kind.
Water is collected at the curb cut or inlet. The biofilter portion of the system includes a 4-in. top filter layer of shredded mulch and an 18-in. layer of non-proprietary filter media (a high-capacity planting mix), yielding a maximum design treatment loading rate of 1.0 gal per minute (gpm) per sq ft. This provides a treated flow capacity of 32 gpm (0.071 cu ft per second) for a 4-ft-by-8-ft unit. Beneath the filtration media is a separation layer and a 6-in. perforated pipe to collect treated runoff, carry it out of the TreePod unit, and then deliver it into the regional drainage system. The pipe is bedded in angular drain rock that fills the bottom of the box and forms the transition to the soil beneath the unit.
Pollutant removal efficiencies for such biofilter cells (high-rate vegetated media filters) or tree box filters with these characteristics exceed most of the U.S. Environmental Protection Agency’s other structural best management practices. Some pollutants are broken down and become nutrients for the trees.
During a storm, the “first flush” of pollutant-heavy runoff—including oil and grease, bacteria, heavy metals, other suspended solids and large debris—enters the unit. As water moves through the system, settling and filtration remove suspended solids and pollutants. Large debris is collected on top of the mulch layer, under the grate, and can easily be removed by maintenance crews. In fact, maintenance largely consists of debris removal and periodic replacement of the top mulch layer.
The TreePod unit set in position on top of the angular rock bed.
The green nature of this solution was an important element in obtaining funding. “Without the TreePods, the project never would have been approved,” said City Engineer Jackson Myers.
The College Park project used a simplified TreePod model. Typical units include a pre-filter chamber and a bypass feature. The pre-filter collects large debris and keeps it out of sight until maintenance crews can remove it. The bypass is designed to handle high flows, eliminating the need for installing a separate high-flow bypass structure. Filtered water is collected by a geotextile-wrapped 6-in. perforated pipe and then carried out of the unit to the sedimentation ponds.
“TreePods are supplied as a ‘turnkey’ solution,” said Skip Short, Oldcastle vice president. “We provide the TreePod unit, soil media, grates and tree. We also plant the tree and maintain it at no cost for the first year. The company helped College Park choose regionally appropriate trees—crape myrtles, apple serviceberries and flowering dogwoods—which are warranted for one year.”
[Visit Oldcastle's SWS Storefront]
The city is now advertising the area’s availability for development, and it has received interested responses, including some from overseas. Myers is enthusiastic about the use of biofilters for storm water quality. “We’re the first project with this type of system here in the southeast,” he said. “But I’m excited, and hoping we’re starting a trend.”
