Constructed Wetland System Wins National Honor

The American Council of Engineering Companies (ACEC) announced that it selected Bernardin Lochmueller & Associates' (BLA) wetland treatment system in Washington, Ind., for a 2013 Engineering Excellence Honor Award. ACEC, the leading engineering trade association, evaluated 146 submissions and selected the Washington project as one of 24 to recognize nationally.

Like many Midwestern cities, Washington's sanitary and storm water system was originally combined in order to save money. However as the city grew, it did not have enough storage capacity and as little as 1/10 of an inch of rain caused combined-sewer overflows (CSOs) of sewage mixed with rainwater directly into waterways. The city needed to fix this, but the traditional approaches of separating sewer and storm water pipes or adding wastewater treatment plant capacity would have cost $53 million, according to one study. That is the equivalent of nearly $11,800 for each household in this small city.

The city's CSOs flowed into Hawkins Creek, which runs through residential neighborhoods. Between rains, the creek dried, turning gray and foul smelling. It supported no wildlife. A 2001 water quality study found unsafe levels of many contaminants, and the city posted signs warning residents that contact with the creek could make them sick.

Washington asked BLA to develop a solution that would incorporate "green design" to lower costs. BLA's engineers devised a system that cost $26 million less to build, when compared with the next lowest-cost alternative. The solution also cut projected annual operating costs by $1.6 million.

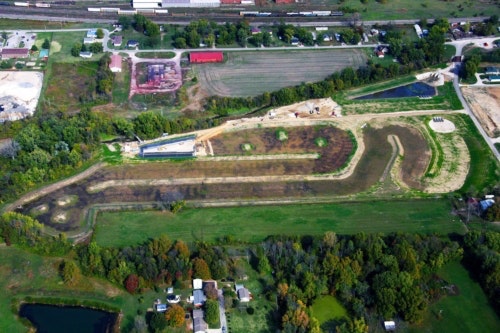

Now, when it rains, the CSOs flow to a 5-mg storage tank where it's held until the wastewater treatment plant can process it. When the tank is full, CSOs travel via two 84-in. pipes to a 27-acre constructed wetland. There, fine sediment settles in the forebay and then plants filter out contaminants. The effluent passes through a UV disinfection system before being discharged into Hawkins Creek.

In June, the Indiana Department of Environmental Management (IDEM) approved the system, saying it met Washington's Clean Water Act obligations. The system handled its first major rain events in September. Water quality tests showed that the water being discharged by the wetland system surpassed IDEM's quality requirements and even surpassed the more stringent standards for the city's wastewater treatment plant. For the first time in years, Hawkins Creek has minnows, frogs, and other wildlife.

The project has also been recognized by the ACEC Indiana Chapter, Water & Wastes Digest and Engineering New-Record Midwest.

Source: Bernardin Lochmueller & Associates
